53-03 Root Fillet Fairing

53-03 Root Fillet Fairing	Quantity Installed
	2

All may be missing.

Note:

Must not be combined with MCDLitem 54-01 (Refer to 54-01 Nacelle Strake) or MCDLitem 54-03 (Refer to 54-03 Pylon Pressure Relief Door 413(423) BL - 414(424) BR).

•

Performance:

The following performance penaltyis applicable:

-	Takeoff performancelimiting weight is reduced by 1 560 kg (3 440 lb).

Note:

The above performance penaltyis not applicable if the flight crew can check V2 greaterthan 1.15 VS1G.

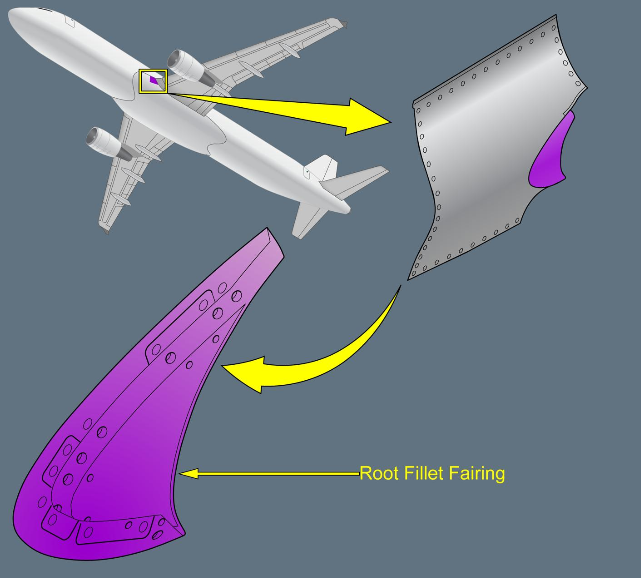

ILLUSTRATION ROOT FILLET FAIRING

Effectivity: 2
