27-08 Seal Between Inboard and Outboard Flap

27-08 Seal Between Inboard and Outboard Flap	Quantity Installed
	6

Three may be missing.

Note:

For dispatch withinter-flap cushion seal missing, Refer to 27-13 Inter-flap Cushion Seal.

•

Performance:

The following performance penaltiesare applicable:

-	Takeoff andapproach climb performance limiting weights are reduced by 63 kg (139 lb) per missing seal
-	En route performancelimiting weight is reduced by 72 kg (159 lb) per missing seal
-	If two or moreseals are missing, fuel consumption is increased by 0.16 % per missing seal.

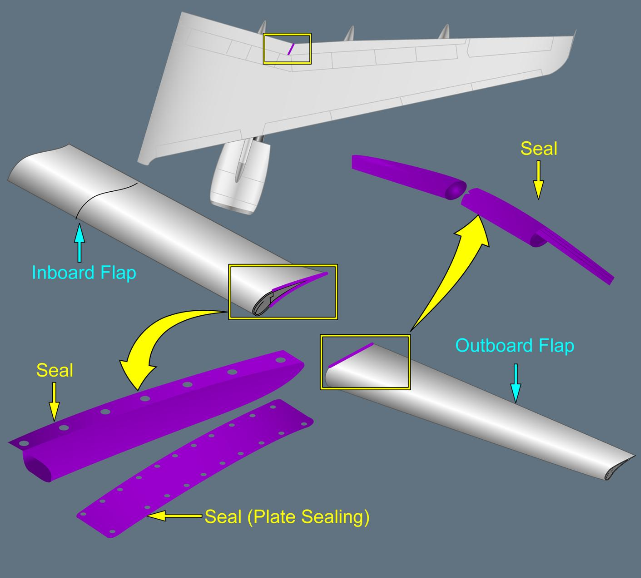

ILLUSTRATION SEAL BETWEEN INBOARD AND OUTBOARD FLAP

Effectivity: 2
